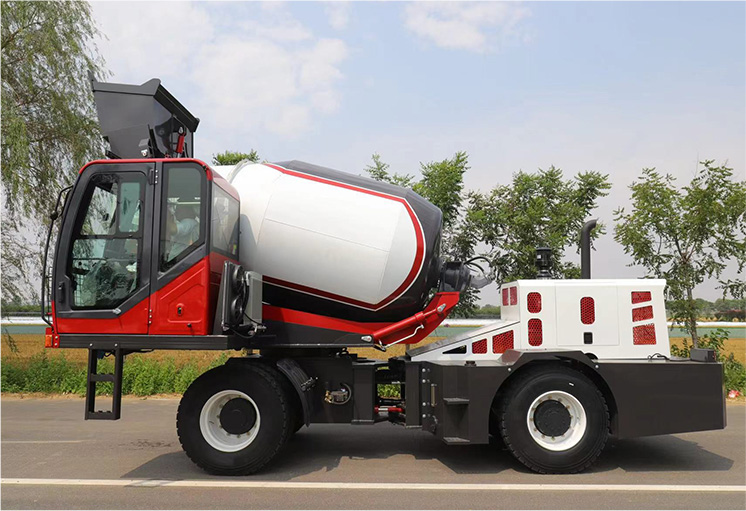

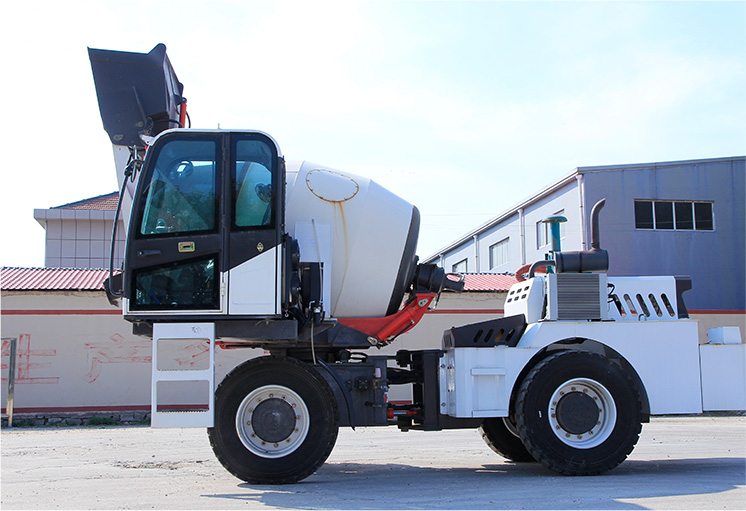

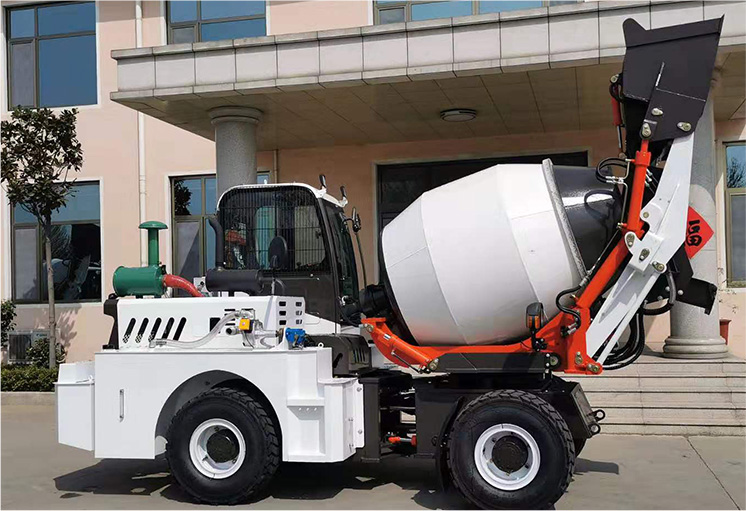

Self loading concrete mixer truck is a type of equipment that integrates automatic loading, mixing, transportation, and unloading. Raw materials are automatically fed into the mixing tank through a hopper for mixing, and then transported to the designated location for pouring. It is widely used in road, bridge, and housing construction, as well as small and medium-sized rural projects, and is particularly suitable for construction environments with limited space. It is a highly efficient equipment in the concrete construction field and is often referred to as a small mobile concrete mixing plant.
Housing Construction
The customer requires 200m³ of concrete per day. Using the SITC6500, which features automatic feeding and water metering, only one person is needed to operate it, saving 3-5 workers. Only 3 people are required to complete the daily output, reducing labor costs and significantly improving production efficiency.
Construction of factory roads
The customer's daily concrete demand is 160m3, and the factory road surface area is 2200㎡ with a thickness of 20cm. Due to the distance from the concrete mixing plant, SITC5500 was recommended based on the customer's needs. The road paving was completed in just 5 days, which effectively solved the concrete supply problem.
Construction of factory roads
The customer's daily concrete demand is 160m3, and the factory road surface area is 2200㎡ with a thickness of 20cm. Due to the distance from the concrete mixing plant, SITC5500 was recommended based on the customer's needs. The road paving was completed in just 5 days, which effectively solved the concrete supply problem.
Township Road Construction
The customer's daily concrete demand is 160m³. Due to soft, muddy roads, narrow road widths, and limited road conditions, the machine's compact design allows it to travel on roads at least 3 meters wide. Equipped with a four-wheel drive system, it can handle complex road conditions common in rural areas, such as mud and slopes. This multi-functional machine can save the labor of 3-5 people.
Highway construction
The customer's daily concrete demand is 220m3, and the road width is 40 meters. The demand for concrete is relatively large, and the distance to the concrete mixing plant is relatively far. The customer chose two SITC7500 concrete mixers, which saves many workers, allows on-site mixing and production, eliminates the transfer costs of commercial concrete plants, and integrates the functions of feeding, mixing and transportation, reducing equipment allocation and waiting time.
Ditch repair
Due to the complex road conditions and the customer's requirement to be able to navigate narrow rural roads, we recommended the SITC5500 based on the width of the roads provided by the customer. Its compact body and four-wheel drive met the customer's working conditions and daily output requirement of 150m³. We also provided a discharge chute with a 270-degree rotating discharge function, which can precisely deliver concrete to any location within the trench.
Mountain road repair
Due to the narrow mountain roads, large mixer trucks have difficulty entering, and the demand for concrete is relatively large. Therefore, the customer chose the SITC7500, which features an articulated connection, a relatively compact structure, better maneuverability, four-wheel drive, strong climbing ability (up to 30°), and advantages in flexible mobility and multi-directional unloading capabilities.
Road construction
Due to limited space, the client needed a maneuverable concrete mixer truck with a daily output requirement of 150-180 m³. We recommended the SITC5500, a compact, articulated mixer that can easily navigate rural roads. This versatile machine requires only three
Fully hydraulic system:
Hydraulic brake, driving system, mixing pump, water pump etc
Simpler operation:
only 1 operation lever, no need to switch frequently.
More compact structure:
10% reduction in length and 20% reduction in height
Bigger water tank:
800L – 22% increase in volume
Self-priming Water Pump
This pump allows the self loader mixer to draw water from external sources without the need for external priming. It ensures a continuous water supply for mixing concrete, essential for the concrete mixing process.
Rear Frame
The rear frame supports the mixing drum and provides stability to mixer beton self loading. It is designed to withstand the weight and movement of the mixed concrete.
Fuel Tank
Stores fuel, typically diesel, which powers the self concrete mixer machine’s engine. Adequately sized to ensure long operational hours before refueling is needed.
Front Rack
This is a support structure at the front of the china self loading concrete mixer, often used for mounting attachments or additional equipment. It can also provide stability and balance to the self loading concrete truck mixer.
Bucket
Used for scooping and loading raw materials into the concrete mixer loader. It is optimized in size and shape with a circular press for efficient material collection.
Hydraulic Oil Tank
Stores hydraulic oil, which is crucial for powering the hydraulic system of the self loading truck mixer. The hydraulic system controls various movements of the components of self loading mixer truck.
Driver’s Cab
A protected area where the operator controls the concrete mixer truck self loading. Equipped with controls and instruments necessary for operating the self loading concrete mixer truck.
High-Pressure Water Pump
Used for cleaning or for providing additional water pressure during mixing. Ensures adequate water flow for various mixing and cleaning tasks.
Power train
Includes the engine, transmission, and other drive components. Transfers power from the engine to the wheels or tracks, enabling movement.
Water Tank
Stores water used in the mixing process. Can be filled manually or via the self-priming water pump.
Mixing Tank
where raw materials are mixed to produce concrete. SITC self loading mixer mixing tanks have built-in 6 spirals and 8 paddles to ensure even mixing and increase mixing efficiency.
Brake Booster Pump
Assists in providing additional braking force when needed. Enhances safety by ensuring effective braking in various conditions.
Firstly, this concrete mixer truck drives to the construction site to load the raw materials (cement, sand, aggregate). The self loading mixer utilises the newly upgraded third generation bucket to automatically load the materials into the mixing drum. This eliminates the need for manual labour and ensures a consistent material intake.

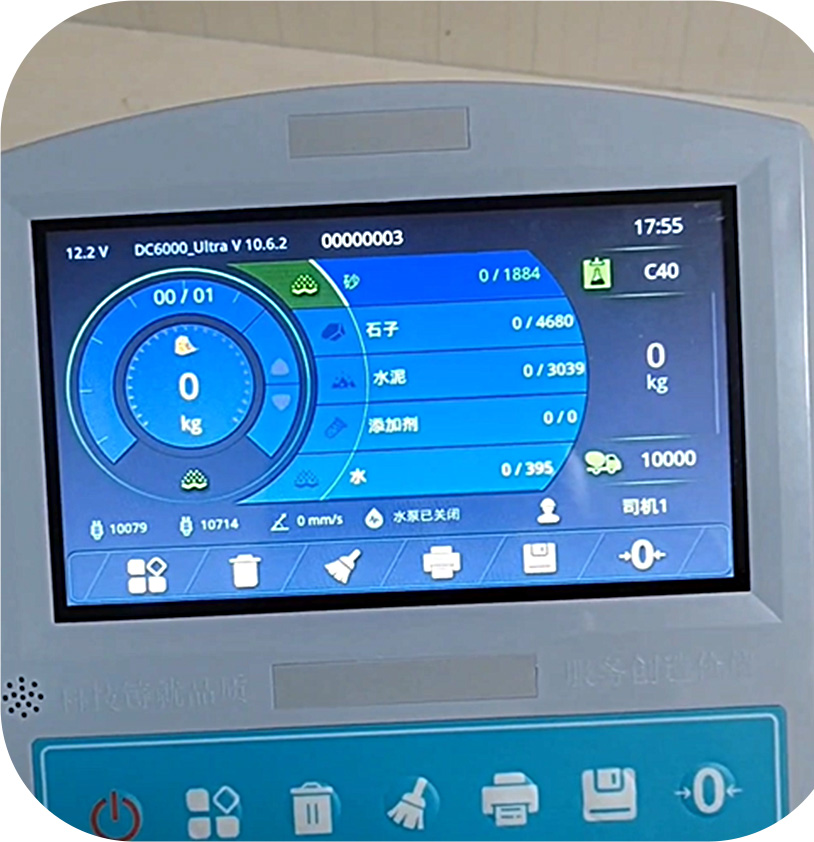

After weighing the materials, the drum rotates at a uniform speed of 360°, and each batch of materials is mixed for 15 minutes. The stirring process ensures the uniform distribution of cement slurry and aggregates, achieving processability for prefabricated applications. Rapid and uniform stirring can enhance adhesion, which is crucial for components such as plates or columns that require structural integrity.
The fully mixed concrete is transported to the pouring area. Designed for off-road mobility (e.g. four-wheel drive at speeds of up to 45 km/h), the self mix concrete truck features a 270° discharge angle for flexible pouring. This minimises transport time, maintains the slump and reduces the risk of segregation.
At the precasting site, the drum is tilted or rotated to unload concrete directly into the mould. Automatic controls of this self loading concrete mixer with pump can regulate the flow rate to ensure uniform filling and minimise air pockets. The process supports rapid batch turnaround, aligning with the precast production schedule of components such as beams or panels.
By following these steps you can ensure efficient and safe operation of your mixer. If you want more specific information about operating a self-loading mixer
you can open this pageMake a detailed comparison of several self loading concrete mixer suppliers in order to get a more affordable and reasonable price of self loading concrete mixer. SITC is a reliable supplier and we can offer you the most competitive price.
SITC not only has large factories and workshops in China, advanced technology and professional technicians and so on, but also abroad. We have LBS centers in Uzbekistan, Russia, Malaysia, Saudi Arabia, Kazakhstan, United Arab Emirates, Philippines and Indonesia. If you choose us, you will save a lot of transport cost and maintenance cost.
Choose a top quality self concrete mixer and the best branded spare parts so that your machine will have a long life.
SITC has been manufacturing, marketing and selling self loading concrete mixers for many years and has gained a wide range of positive feedback from customers all over the world. The most fundamental reason is that we use imported branded spare parts from Italy, Germany and USA.
In addition self loading concrete mixer price, parts, comprehensive strength, export cases will be best evidence to evaluate a self loading concrete mixer supplier.
Since entering this field as one of the first domestic pioneers in 2014, we have consistently led the market and achieved top sales year after year. By 2025, our annual sales have successfully exceeded 3,000 units.
SITC self loading cement mixer for sale has obtained ISO certificate, you don’t have to worry about the quality of our products. And the second reason is our considerate service. Recently, we SITC GROUP have updated our own enterprise culture. Our prospect is to build global industrial products one-stop service platform. Of course, the core of it is the service.
Our service concept is to make customers have a satisfactory selection, secure purchase, and happy utilization.
And one-stop service means once you place an order, we will eliminate your trouble back at home and we will do everything for you, for our mission is to make it easier to buy and sell industrial products and we put the customers first.
Saving Cost: Self load concrete mixer for sale is like a small mobile concrete batching plant that can complete the entire concrete production process. Investing in a self-loading mixer is much more profitable compared to a batching plant.
One Operator: Self-loading concrete mixer is small in size and has a large cab, so one person can achieve the complete operation.
Prices vary because different models of self-loading mixers have different capacities. Generally speaking, the price of a self-loading concrete mixer is around $10,000-$50,000. It is relatively inexpensive, so it is a more cost-effective choice to purchase a self-loading mixer.
The self loading concrete mixer below 9 is equipped with more concrete, and the car will miss the car during the climbing process; the 12 -square mixer truck is equipped with more concrete, the mixing will be layered, the concrete sand rate is low, the stone particle size is large, the stone particle size is large There are many stones in the construction site.
The drying material is generally five years, and the wet material is generally seven years. Generally, the self loading concrete mixer is prone to problems after 3 years. The problem of self loading concrete mixer has a lot to do with personal maintenance and manufacturers.
After concrete solidification, its main component is siliconic acid calcium and trigly silicate. Theoretically, hydrochloric acid can relieve its solid shape with it. However, it is actually difficult to operate, because the ingredients of the self loading concrete mixer are very small, the amount of hydrochloric acid is difficult to control, and hydrochloric acid can also react with the tank of self mixing concrete truck. In fact, this situation occurs, and often cuts the tank with electric welding or gas, and then crushes the solidified concrete machinery.
| Discharge Capacity 3500L | Concrete Output 14m³/h |
| Mixing Drum Capacity 5500L | Water Tank 800L |
| Total Weight 8500kg | Mini Turning Radius 2900mm |
| Discharge Capacity 1500L | Concrete Output 7m³/h |
| Mixing Drum Capacity 2500L | Water Tank 650L |
| Total Weight 6000kg |
| Discharge Capacity 2000L | Concrete Output 10m³/h |
| Mixing Drum Capacity 3200L | Engine power 78kw |
| Total Weight 6300kg |
| Discharge Capacity 3000L | Concrete Output 12m³/h |
| Mixing Drum Capacity 4500L | Engine power 85kw |
| Total Weight 8000kg |
| Discharge Capacity 4000L | Concrete Output 16m³/h |
| Mixing Drum Capacity 6500L | Engine power 91kw |
| Total Weight 9000kg |
| Discharge Capacity 5000L | Concrete Output 20m³/h |
| Mixing Drum Capacity 7500L | Engine power 92kw |
| Total Weight 11000kg |
