Product Features and Core Advantages

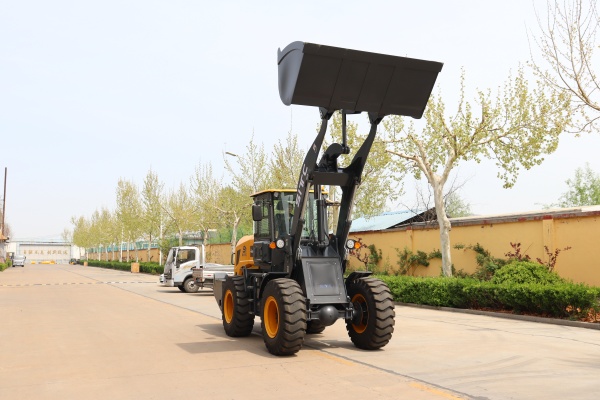

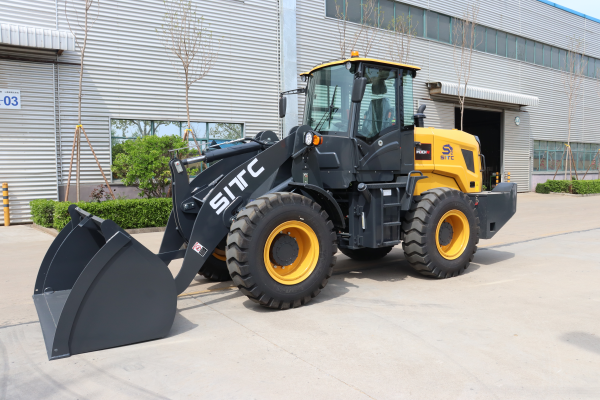

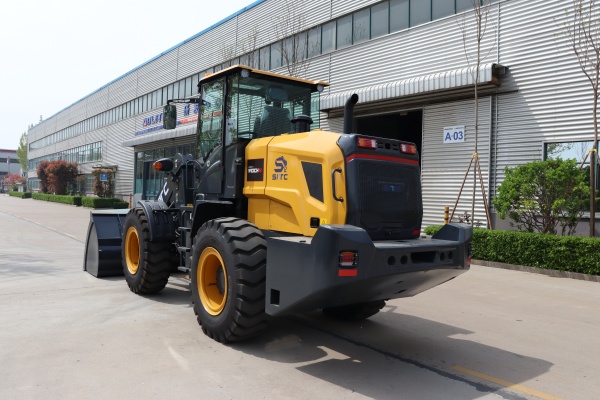

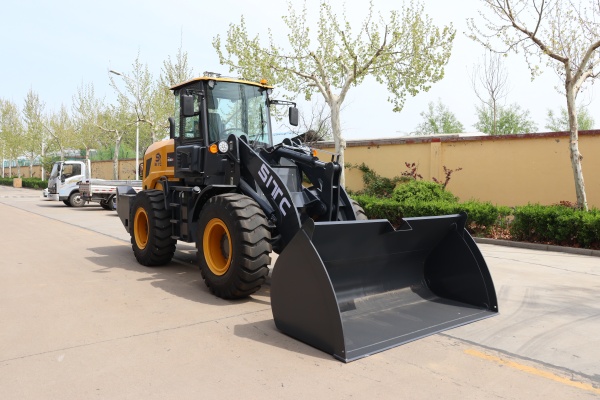

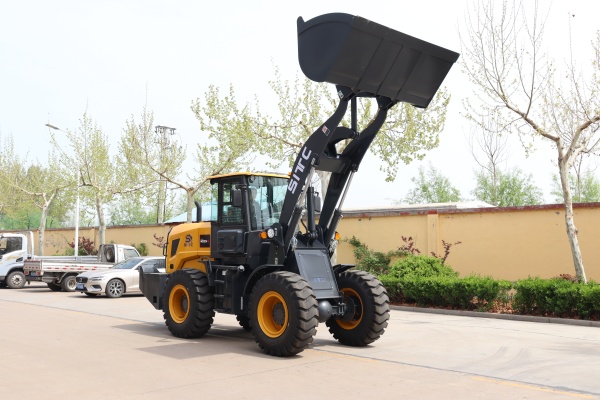

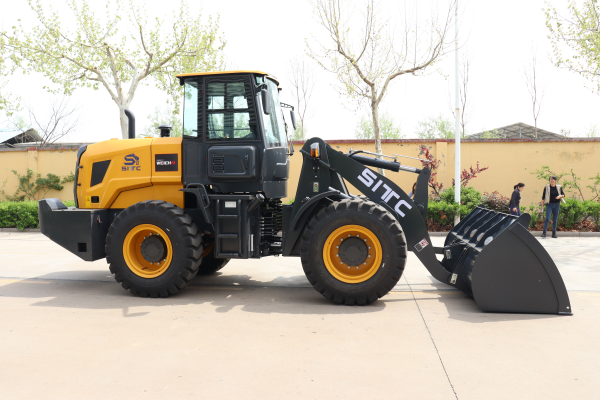

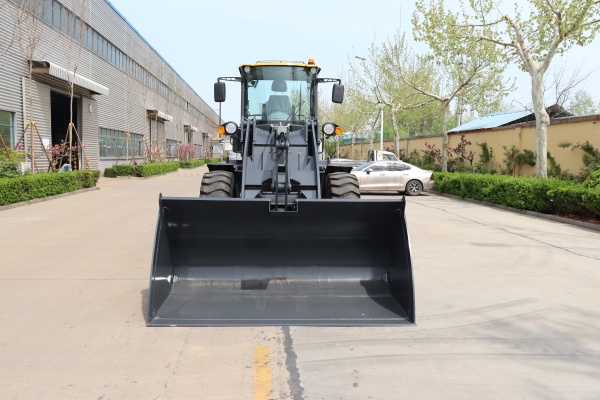

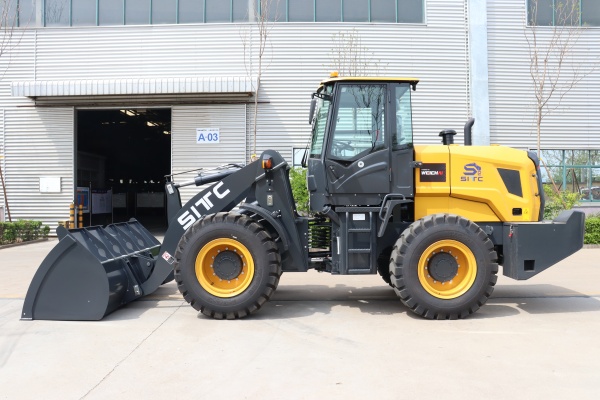

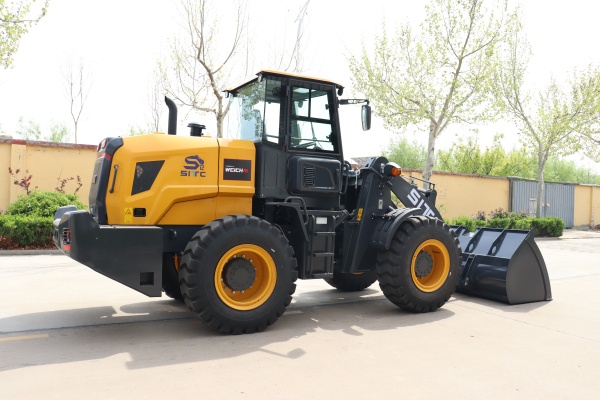

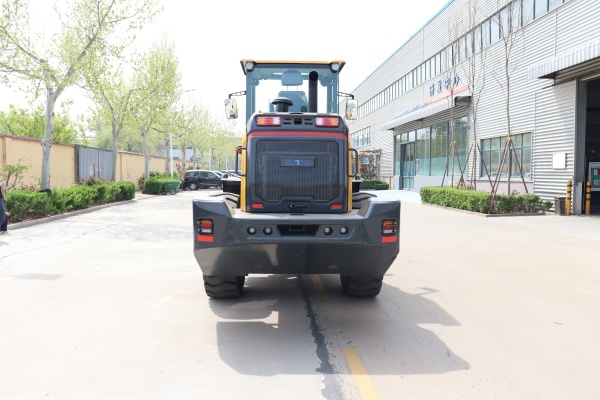

The 630TWheel Loader is a wheeled loading machine developed specifically for medium-to-high-intensity operational environments. Built upon a design philosophy emphasizing high engineering reliability, the machine achieves an optimal balance of high efficiency, robust stability, and low operating costs through the synergistic optimization of its powertrain, hydraulic system, and structural components.
Widely applicable across diverse settings—including mining operations, aggregate yards, construction sites, and agricultural material handling—this model maintains consistently stable performance even under complex terrain conditions and heavy loads. It stands as a highly adaptable loading machine that combines exceptional versatility with cost-effectiveness.
630T Loader: Key Specifications
Rated Load: 3000 kg
Operating Weight: 8300 kg
Rated Power: 92 kW (Approx. 125 HP class)
Engine Model: Weichai WP6G125E22 (Turbocharged)
Bucket Capacity: 1.4 m³ (Standard Bucket)
Grain Bucket Capacity: 2.2 m³(Optional)
Max. Dumping Height: 3300 mm
Max. Dumping Distance: 1020 mm
Travel Speed: 35 km/h
Drive Type: Four-Wheel Drive (4WD)

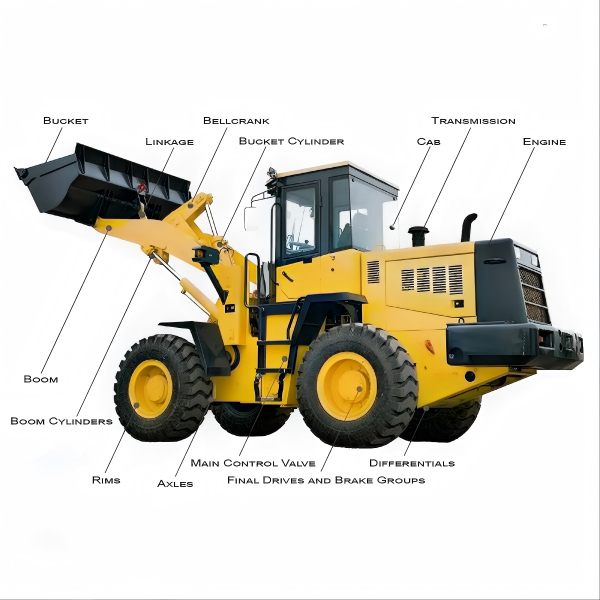

Front-end working device (shovel core) | Bucket+ Boom+ Linkage/ Bellcrank+ Boom/Bucket Cylinders | This system features a high-strength, wear-resistant bucket paired with an optimized linkage structure, complemented by composite-sealed hydraulic cylinders, to deliver enhanced lifting force and loading efficiency. The bucket capacity is ideally suited for light-to-medium-duty applications, ensuring superior efficiency in material handling. Furthermore, the dual-cylinder configuration facilitates smoother lifting operations, significantly mitigating the structural impact of eccentric loads and thereby extending the service life of the working implement. |
Hydraulic Control System (Operational Core) | Main Control Valve | As the "brain" of the hydraulic system, the main control valve directly determines the machine's overall operational responsiveness. The 630A's hydraulic system features a precision flow-matching design, delivering a smooth operating feel and rapid response; the boom lifting and bucket tilting movements are seamless and fluid, while simultaneously minimizing hydraulic losses to enhance operational smoothness and fuel efficiency. |
Cab and Driving Experience | Cab | The cab of the 630A features a new, spacious design that offers an expansive, unobstructed field of view, thereby minimizing operational blind spots. Simultaneously, its optimized sealing and vibration-damping structures effectively reduce noise and vibration, significantly enhancing operator comfort during prolonged work shifts. The accompanying electronically controlled joysticks feature a simple, intuitive operating logic—complete with an anti-shock buffering design—enabling even novice operators to quickly master the controls while ensuring a higher level of safety. |
Powertrain and Transmission (The Core of Performance) | Engine+ Transmission | Equipped with proven powertrains—such as those from Weichai or Cummins—the machine delivers stable and reliable power output, effectively meeting the varying power demands of diverse operating conditions. Paired with a synchromesh mechanical transmission, it ensures smooth shifting between forward and reverse gears while maintaining high transmission efficiency; this not only guarantees highly efficient power delivery but also reduces fuel consumption and maintenance costs. |
Differentials+ Final Drives and Brake Groups + Axles + Rims | Equipped with a large-diameter wheel-side drive axle and a wet multi-disc braking system, this machine boasts exceptional load-bearing capacity and significantly enhanced traction compared to models in its class, ensuring superior passability in muddy terrain and on steep slopes. The design features large-diameter brake discs and wide-profile tires, which not only boost braking safety but also enhance overall machine stability, providing greater peace of mind when operating under heavy loads or on slippery surfaces. |
The 630T Loader: Six Core Advantages
I. Powerful Engine and High-Efficiency Transmission System: Stable Output Under Heavy-Load Conditions
The 630T loader is equipped with a mature and reliable power platform, featuring deeply integrated and optimized matching between the engine and the transmission system; this ensures that the machine maintains a continuous, efficient, and stable power output across a wide range of operating conditions.
Its low-speed, high-torque design enables robust starting capabilities—even under full load, during uphill climbs, or on soft ground—effectively preventing engine stalling. With rapid power response and precise throttle control, operations such as loading and material transfer are executed with greater fluidity and efficiency.
Even during prolonged, continuous operation, the machine exhibits minimal power attenuation and exceptional stability, making it particularly well-suited for high-intensity, heavy-duty construction environments such as mines, aggregate yards, and earthmoving projects.
II. Optimized High-Efficiency Hydraulic System: Faster and More Precise Operations
The machine's hydraulic system incorporates a high-efficiency, energy-saving design philosophy. Through precise control via a multi-way valve and optimized matching of system flow, it achieves highly coordinated operation across lifting, tilting, and compound movements.
The hydraulic system features rapid response times and smooth, shock-free transitions between actions, thereby effectively boosting the efficiency of single-cycle operations. The lifting process is smooth and powerful, while the unloading action is clean and thorough—minimizing material residue and spillage to enhance overall operational quality.
Furthermore, the hydraulic system minimizes energy loss and maintains stable oil temperature control, ensuring the equipment sustains reliable performance output even during prolonged, high-intensity continuous operation.
III. Reinforced Overall Structural Design: Enhanced Load-Bearing Capacity
The 630T incorporates a design philosophy centered on an integral, reinforced structure. Its frame is fabricated from high-strength alloy steel, with critical load-bearing zones specifically thickened and structurally strengthened.
The complete machine exhibits exceptional torsional rigidity and impact resistance; it maintains structural stability—resisting deformation and cracking—even under heavy-load shoveling, frequent impact, and complex terrain conditions.
Furthermore, optimized welding processes and stress distribution designs effectively extend the machine's service life, significantly enhancing its long-term reliability in harsh operating environments.
IV. High Stability and Strong Environmental Adaptability: Safer and More Reliable Operations
The machine's center of gravity layout has been scientifically optimized to ensure excellent stability—even during high-lift and heavy-load operations—thereby significantly reducing the risk of tipping.
The chassis structure is paired with a wide-body tire design, enhancing ground adhesion and off-road capability to effectively navigate complex terrains such as muddy ground, gravel, and slopes.
Furthermore, the machine is equipped with a high-efficiency heat dissipation system and a reinforced electrical protection structure, enabling it to effectively withstand harsh conditions—including high temperatures, heavy dust, and high humidity—and ensuring stable operation across diverse global construction environments.
V. Fuel Economy Optimization + Maintenance-Friendly Design: Reducing Total Cost of Ownership
Through the synergistic optimization of its powertrain and hydraulic systems, the 630A achieves an optimal balance between fuel consumption and operational efficiency, minimizing energy waste and enhancing productivity per unit of fuel consumed.
While ensuring robust power output, the machine effectively reduces long-term operating costs and boosts the customer's overall return on investment.
The entire machine features a modular design concept, with key maintenance points centrally arranged to provide ample access space for inspections. This facilitates more convenient daily maintenance, significantly reduces service time, improves equipment availability and utilization rates, and minimizes losses associated with downtime.
VI. Multifunctional Attachment Expansion System: Versatile Applications for High Value
The 630T loader is equipped with a quick-change attachment system, enabling the rapid switching between various work implements in a short time. This allows for "one machine, multiple uses," significantly expanding the equipment's scope of application and enhancing its economic value.
Optional attachments include:
l Standard Bucket (Sand, Gravel, and Earthmoving Operations)
l 2.2 m³ High-Capacity Grain Bucket (Loading of Grain, Feed, and Bulk Materials)
l Pallet Forks (Pallet Handling and Logistics Operations)
l Log Grapple (Forestry and Timber Handling)
l Hay Grapple (Agriculture and Ranch Operations)
l Sweeper Bucket / Snow Plow (Municipal and Road Maintenance)
Through the expansion of its attachment system, the equipment can broadly cover diverse fields—including engineering construction, agricultural production, logistics and transportation, and municipal engineering—thereby significantly enhancing both equipment utilization and return on investment.
Routine Operation
1. Before Operation
Walk-around Inspection: Check for oil, coolant, or air leaks; inspect tire pressure and check for embedded objects; verify that pins and bolts are securely fastened.
Fluid Level Checks: Check engine oil, coolant, hydraulic fluid, transmission fluid, and brake fluid levels (perform checks on level ground with the engine cold).
Startup Self-Check: Allow the engine to idle for 30 seconds to ensure no warning lights appear on the instrument panel; verify that lights, horn, and brakes are functioning normally; operate the lifting, tilting, and steering mechanisms to ensure smooth movement without any sticking.
2. During Operation
Warm-up: When the engine is cold, allow it to idle to reach operating temperature before engaging in heavy-load work.
Loading: Avoid operating at full load for extended periods; when scooping materials, keep the bucket low and tilt it back smoothly—avoid sudden lifting or dropping movements.
Steering: Steer at low speeds; avoid turning the steering wheel while the machine is stationary (static steering).
Cooling: If the engine temperature becomes too high, stop the machine to allow it to cool down; clean any dust or mud from the radiator surface.
3. After Operation
Cleaning: Remove accumulated mud and dust from the bucket and the machine body; clean the radiator fins.
Draining: Drain water from the fuel-water separator and the air reservoir tank.
Lubrication: Apply grease to all hinge points and pins until fresh grease begins to extrude.
Parking: Park in a dry, well-ventilated area; disconnect the main power supply for long-term storage; during winter, drain the coolant system or use antifreeze.
